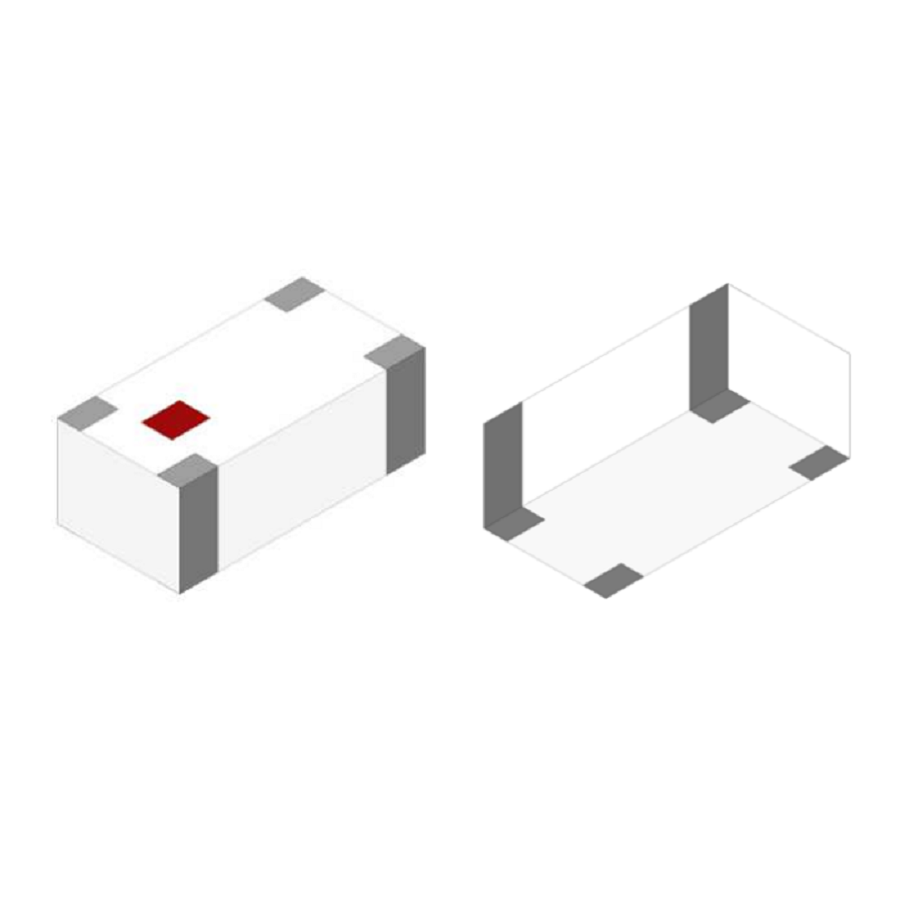

2450AT18D0100E
Manufacturer:
Johanson Technology
Mfr.Part #:
2450AT18D0100E
Datasheet:
Description:
RF - Antennas 1206(3216 Metric) SMD/SMT 2.4 GHz to 2.5 GHz -1 dB
| Parameter | Value |
|---|---|
| Length | 3.2 mm |
| Width | 1.6 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Power Rating | 2 W |
| Height | 1.2 mm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Impedance | 50 Ω |
| Frequency | 2.45 GHz |
| Bandwidth | 100 MHz |
| Max Power Dissipation | 2 W |
| Gain | -1 dB |
| Number of Bands | 1 |
| Max Frequency | 2.5 GHz |
| Return Loss | -10 dB |
| Frequency Range | 2.4 GHz to 2.5 GHz |
| Frequency Group | UHF (2 GHz to 3 GHz) |
| Antenna Type | Chip |
Stock: 3464
Distributors
pcbx
pcbxUnit Price$0.60464
Ext.Price$0.60464
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.60464 | $0.60464 |
| 10 | $0.49208 | $4.92080 |
| 25 | $0.45179 | $11.29475 |
| 50 | $0.41480 | $20.74000 |
| 100 | $0.38085 | $38.08500 |
| 300 | $0.36412 | $109.23600 |
| 500 | $0.34813 | $174.06500 |
| 1000 | $0.33111 | $331.11000 |
